Migration Compatible Radios

A migration compatible radio, alternately known as a flex mode radio is capable of operating at current Phase One APCO-25 technical standards as they relate to conventional (non-trunking) 12.5 kHz compatibility and backwards compatible to 25 kHz, both in the analog mode.  These radios are capable of being upgraded to operate on both analog and digital modes with a channel spacing of 12.5 or 25 kHz.

By the way, if some of the terms we are using are somewhat foreign to you, don't feel alone.  Our entire industry is learning as we go.  For the technically inclined, or those who simply want more information on this whole APCO-25 subject, we invite you to visit a very informative web site at  http://www.apcointl.org/frequency/project25/information.html.  For more information on trunking, you may want to visit www.radioreference.com/modules.php?name=Content&pa=showpage&pid=3.  Suffice it to say for now that migration compatible radios can be a good investment if you are looking at a 20 year equipment life cycle (which is not at all uncommon in public safety).

The BK Radio division of Relm Wireless is a long time supplier of high quality, ultra reliable radios used by the U.S. Forest Service, the Department of the Interior and others who demand radios designed for rugged use.  The GPH series handheld and the GMH series mobiles are designed specifically for migration planning.  The prices are a little higher than conventional Phase One radios, but in the long run, the price is easily justified.   The model generally specified for use in working with the U.S. Forest Service is specified below.



GPH 5102S VHF Handheld Radio

5 watts VHF, Lexan case
Frequency range - 148-174 MHz VHF
240 channels
User programmable using DTMF keypad
LCD Display
Channel spacing - 25 or 12.5 kHz (APCO-25 Phase 1 compliant)
Upgradeable to 12.5 kHz APCO-25 Phase 2 compliance
Size - 6.6" X 2.55" X 1.5"
Weight - 20 ounces
High capacity battery
Desktop drop in charger
Programmable soft switches
Rugged spring loaded belt clip
CTCSS, DCS
Dual Priority Scan
Programmable function keys (3)
MIL-SPEC 810-C/D/E
Factory Warranty - 2 years parts and labor
Click here for detailed specifications



VHF Model
Our Price
$898





Most commonly specified accessories for compatibility with U.S. Forest Service operations are as follows:

LAA-0813 Quarter Wave antenna

$15

LAA-0139  Orange Clam Shell AA battery holder

$24

LAA-0701 Cloning Plug

$21

The comparable mobile to the GPH handheld is the GMH 599 shown below.  Like the GPH, this mobile can later be
upgraded to digital operation when desired.

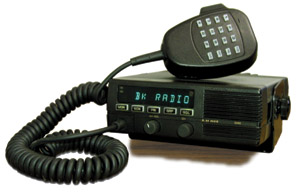

GMH Mobile Radio



GMH 599 2X VHF Mobile Radio

15 to 50 watts VHF (Adjustable)
Frequency range - 148-174 MHz VHF
240 channels
User programmable using optional DTMF keypad microphone - Call for pricing
LCD Display
Channel spacing - 25 or 12.5 kHz (APCO-25 Phase 1 compliant)
Upgradeable to 12.5 kHz APCO-25 Phase 2 compliance
Size -  6" X 9.38" X 2.12"
Weight - 5 lbs.
Microphone, mounting bracket and power cable included
Programmable soft switches
Rugged spring loaded belt clip
CTCSS, DCS
Dual Priority Scan
Programmable function keys (3)
MIL-SPEC 810-C/D/E
Factory Warranty - 2 years parts and labor
Click here for detailed specifications



VHF Model
Our Price
$898










A wide range of accessories is available for the BK Radio flex mode handheld and mobile radios.  Call us at 1.800.489.2611 or email sales@falcondirect.com for pricing.

User information.  Products sold by Falcon Direct are warranted to be technically compliant with the manufacturers specifications.  No other warranty relative to use of the equipment or related service, when applicable, is expressed or implied.  Falcon Direct makes no claim for suitability or fitness of users purpose or application.  Falcon Direct is not responsible for claims arising from the use of equipment or services provided by or through Falcon Direct in which there are losses attributed to the use or application of equipment and/or related services.  User agrees to these terms as a condition of purchase.

So, what did we leave out?  Well there are things like FCC licensing, creative financing, system planning, installation, and post sale services.  We do all that and more.  And, how about the future?  We're already there!

Thanks for visiting with us.  We look forward to serving you!   By the way, if you are not on our mailing list, drop us an email to sales@falcondirect.com to receive your free copy of our monthly eNewsletter.  We think you will find it interesting.  A sample newsletter is available by clicking here.
